Spherical tantalum powder

Niobium nitride (NbN) has the advantages of high hardness, high wear resistance, high melting point and high chemical stability, and is widely used in metal cutting and protective coatings.
Molecular weight:180.94
Density:16.69 g/cm3
Colour:gray
Melting point:3017 °C
Boiling point:5458 °C
CAS NO.:7440-25-7
EINECS (EC NO.):231-135-5
Share With:
Spherical tantalum powder
Product Description
Spherical tantalum powder has a series of excellent properties such as high melting point, low vapor pressure, good cold working performance, high chemical stability, strong resistance to liquid metal corrosion, and large surface oxide film dielectric constant. It is used in electronics, metallurgy, steel , Chemical, cemented carbide, atomic energy, superconducting technology, automotive electronics, aerospace, medical and health, scientific research and other high-tech fields have important applications.
Main properties:Spherical tantalum powder has high purity (99.95%), small particle size (50nm), low oxygen content (<200ppm), good sphericity (>95%), fewer satellite balls, and good fluidity.

Product Features
This product should be stored in a cool, dry room to avoid heavy pressure. It should not be exposed to the air during use, so as to avoid moisture absorption and agglomeration, which will affect the dispersion performance and use effect. Unused products should be sealed or stored in a vacuum after unpacking.
Technical Specification
Model Purity Average Particle Size (nm) Specific surface area Shape Sphericility The spherical rate
D10 D50 D90
Ta(50nm) ≥99.9% 10-30 50-80 <270 12 m2/g spherical >95% >98%
Ta(100nm) ≥99.9% 30-60 50-100 <1000 8.5 m2/g spherical >95% >98%
Model Purity Average Particle Size(um) fluidity Shape Sphericility The spherical rate
D10 D50 D90
Ta(1-10um) ≥99.9% >1 5±1 <10 15 S/50g spherical >95% >98%
Ta(5-30um) ≥99.9% >5 15±3 <30 10 S/50g spherical >95% >98%
Ta(10-50um) ≥99.9% >10 30±5 <50 7.2 S/50g spherical >95% >98%
SEND MESSAGE
RELATED PRODUCTS

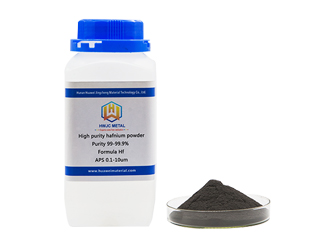

Hafnium powder
Hafnium powder (Hf)
Model:Hf-002
APS(D50):-100+325mesh
Spherical Tungsten powder
Spherical Tungsten powder
Molecular weight:183.85
Density:19.3 g/cm3
Zirconium powder
Zirconium powder (Zr)
Model:Zr-002
APS(D50):-100+325mesh
Tantalum powder
Tantalum powder (Ta)
Model:Ta-001
APS(D50):-325mesh
RELATED cases
Solid Rocket Motor Throat -Hafnium Carbide
Jul 20, 2021
Solid Rocket Motor Throat -Hafnium Carbide
Jul 20, 2021
Special powder for thermal spraying: coarse-grained hafnium diboride

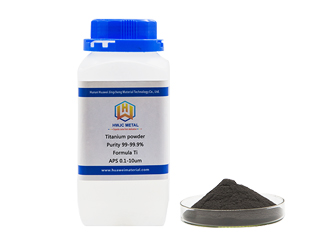

3D printing spherical titanium powder
